300,000 square feet of carrier
hotel/colocation space
120 East Van Buren Street
Phoenix, Ariz.
Interior Photos |

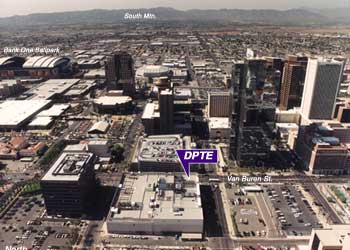

Aerial | Location |Floorplan
- •
Configuration:
- Five
floors, including a basement, concourse and roof level; floor plates of 85,000
square feet; demised suites from 50 (cage area) to 85,000 square feet
- •
Environmentals:
- Roof
space for dry coolers; condenser water system supplied to common areas; capacity
for tenants with N+1 redundancy; ventilation using horizontal intake/exhaust
at each floor
- •
Structural
Heights:
- 12’
– 14’6" clear height ceilings
- •
Column
Spacing:
- Approximately
30’ to 40’
- •
Freight
Elevator:
- 16,000
pound; serves all floors and the roof
- •
Floor
Loading:
- 125
to 1,500 lbs. live loads
- •
Power:
- 480
volts by 16,000 amps service (upgradable @ 4,000 amp increments) with two
separate entrances; multiple forms of redundancy; four separate circuits of
redundant power; power interfaces off of city grid
• Generators:
- Abundant
generator farm area on roof and sub basement for tenant generators; shared
landlord generator alternatives
-
• Fiber:
- The building is a recognized
fiber crossroad on almost every national network backbone. Multiple fiber
entrances and vaults. Two dozen carriers/providers currently serve the building,
including AT&T, Qwest, Sprint, MCI, Global Crossing, Level(3), XO, Cox, Time
Warner Telecom, Allegiance Telecom, SRP Telecom, MFN, Citizens/ELI, WilTel,
Savvis, PureGig and Clear Sky Broadband.
DPTE is adjacent to the largest joint trench in the country (21 carriers).
Numerous additional providers are in the street adjacent to the building and/or
have confirmed that service is available to DPTE, including: Cable & Wireless,
Broadwing, InterNAP, McLeod USA, AGL Networks and Touch America.
•
Emergency
Back-Up
Power:
- All
building common areas; 24/7 security is back up via house generators
•
HVAC/Roof
Space:
- Available
for tenant’s mechanical and technological communication needs; building
has a clear line of sight in all directions
-
• Fuel
Storage Tanks:
- Stored
in city approved 3-hour rated enclosures in building sub basement
-
• Security:
- Palm
reader access; live video cameras; 24/7 security guard and escorted traffic
corridor; alarmed and monitored access to electrical and telecom rooms, and
risers
-
• Fire
Suppression:
- Dry-pipe
sprinkler system throughout; class "A" multi-plexed addressable
building system; fire risers at each floor to connect with pre-action systems
-
• Meet-Me-Room:
- For
tenants to terminate their fiber optic conduits; allows interconnectivity
between tenants; enables tenants to receive service from non-tenant telecom
providers
-
• Risers:
- Multiple
risers for tenants’ installation of electrical, fiber optics, emergency
power; coolant/ glycol riser for both tenant and central building system
|
| For
more information: |
Tony
Wanger
Sterling
Network Exchange, LLC
120 E. Van Buren, Suite 100 Phoenix, AZ 85004
Phone: 602-682-2204
|
|
|
